Mazda
323 1.6 [BW]
MAZDA 323 1.6 [BW] 1.6L 63kW FWD Wagon (1986 - 1989)
No results found
Please try a different combination of filters
Front Brake Pad Set
Dimensions
2 Pads: 92mm x 64mm x 15mm + 2 Pads: 92mm x 64mm x 15mm (Length x Width x Thickness)
Required Qty Per Vehicle
1
Fitting positions
Front Axle
Structure
LH Inner + RH Inner + 2 Outer Pads
Other Notes
With Front Disc and Rear 229mm Drum
Available in
- Status:
- Active
- Part #:
- DB406 GCT
- Status:
- Active
- Part #:
- DB406 HD
- Status:
- Active
- Part #:
- DB406 ULT
Need help choosing the right brake?
Find the right brake now
Front Brake Pad Set
Dimensions
2 Pads: 103mm x 54mm x 15mm + 2 Pads: 116mm x 49mm x 15mm (Length x Width x Thickness)
Required Qty Per Vehicle
1
Fitting positions
Front Axle
Structure
LH Inner + RH Inner + 2 Outer Pads
Other Notes
With Front and Rear Disc
Available in
- Status:
- Discontinued
- Part #:
- DB427 GCT
This variant has been discontinued.
Stock may still be available through one of our stockists.
Need help choosing the right brake?
Find the right brake now

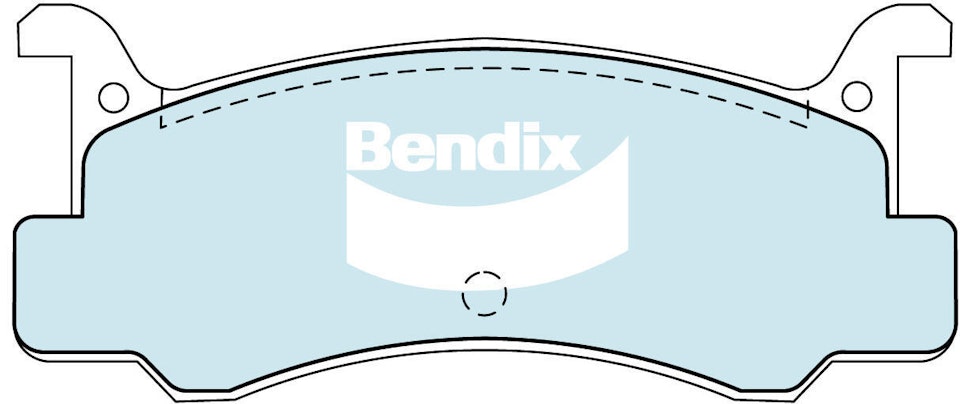

Rear Brake Pad Set
Dimensions
4 Pads: 102mm x 42mm x 12mm (Length x Width x Thickness)
Required Qty Per Vehicle
1
Fitting positions
Rear Axle
Other Notes
With Front and Rear Disc
Available in
- Status:
- Active
- Part #:
- DB1159 GCT
Need help choosing the right brake?
Find the right brake now
Rear Brake Shoe Set
Dimensions
4 Shoes: 229mm x 25mm (Drum Diameter x Width)
Required Qty Per Vehicle
1
Fitting positions
Rear Axle
Structure
4 Shoes
Other Notes
With Front Disc and Rear 229mm Drum
Available in
- Status:
- Discontinued
- Part #:
- BS1637
This variant has been discontinued.
Stock may still be available through one of our stockists.
